SWITCH PROS SP9100 8 BUTTON AUXILIARY POWER SWITCH SYSTEM

Switch Pros SP9100 8 Button Auxiliary Power Switch System | UTVSource.com

The all in one Switch Pros SP-9100 8 Switch Panel Power System, the ultimate solid-state switch solution for your UTV, Truck, or Vehicle needing auxiliary switch capabilities. This Switch Pros versatile system offers an array of programmable options, making it one of the easiest and most functional switch systems available. With features like RGB backlighting, built-in Bluetooth, and comprehensive app control, you can customize and operate your switch panel effortlessly from any iOS or Android device. Enjoy functionalities like preset dimming with memory, master mode for multi-switch control, and user-selectable strobe patterns. Plus, with no bulky relay box and the ability to daisy chain multiple panels, the Switch Pros SP9100 is designed for convenience and efficiency. Proudly made in the USA, this switch panel system is perfect for any off-road enthusiast looking for reliability and top-tier performance.

FEATURES

• RGB Backlighting
• Built-in Bluetooth module for use with free Switch-Pros App
• Program and operate your panel from any device with access to the iOs or Google Play Store
• Battery Voltage Readout on App screen
• Orange LED switch indicators
• LED Input Status Indicators for easy troubleshooting on power module

Program Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Automatic Power-Up upon vehicle start up
• Time Delay off
• No bulky relay box
• Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module
• Proudly made in the USA

SPECS

• 125amp capacity with 8 outputs
• 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
• Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 2” W x .375” H

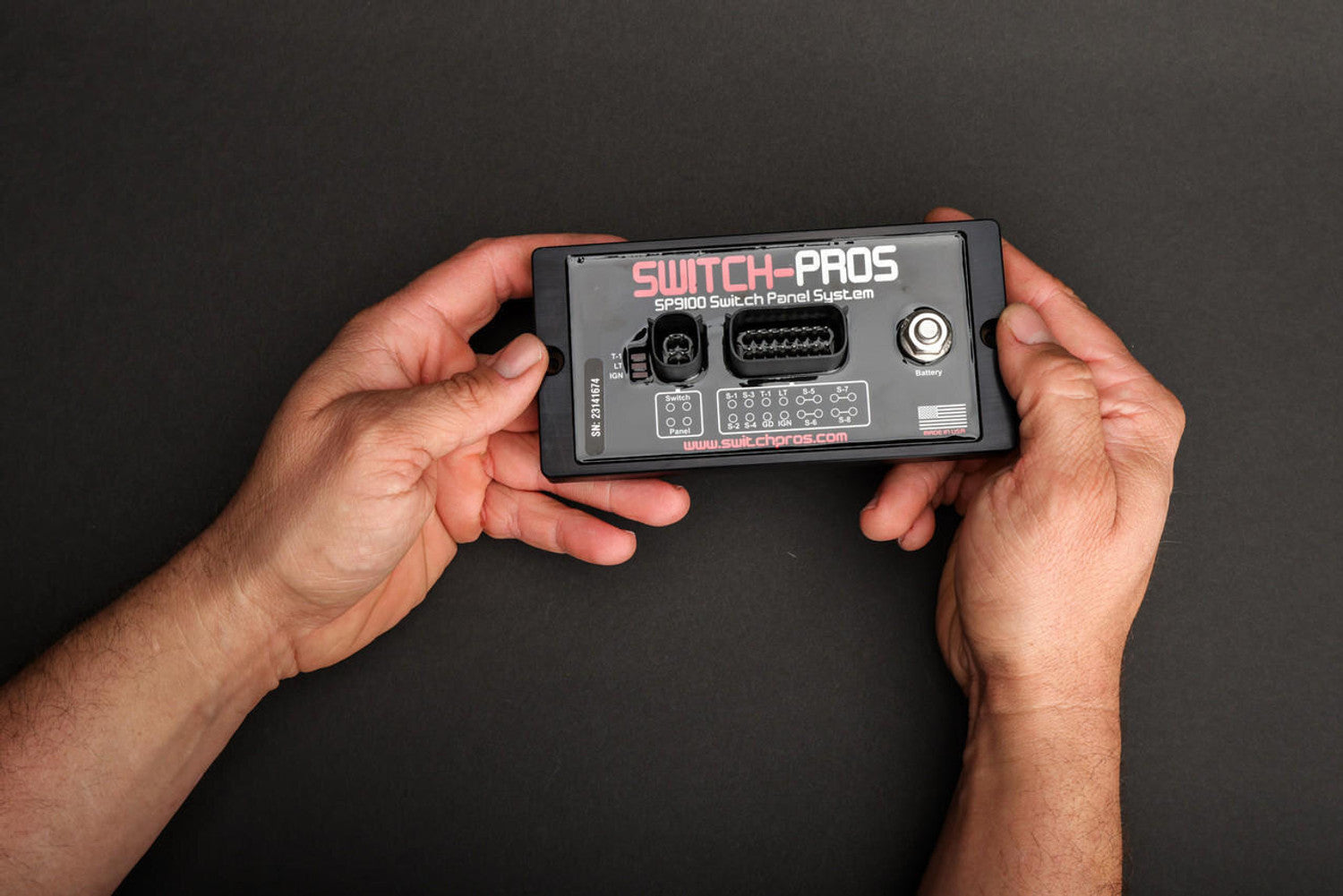

• Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

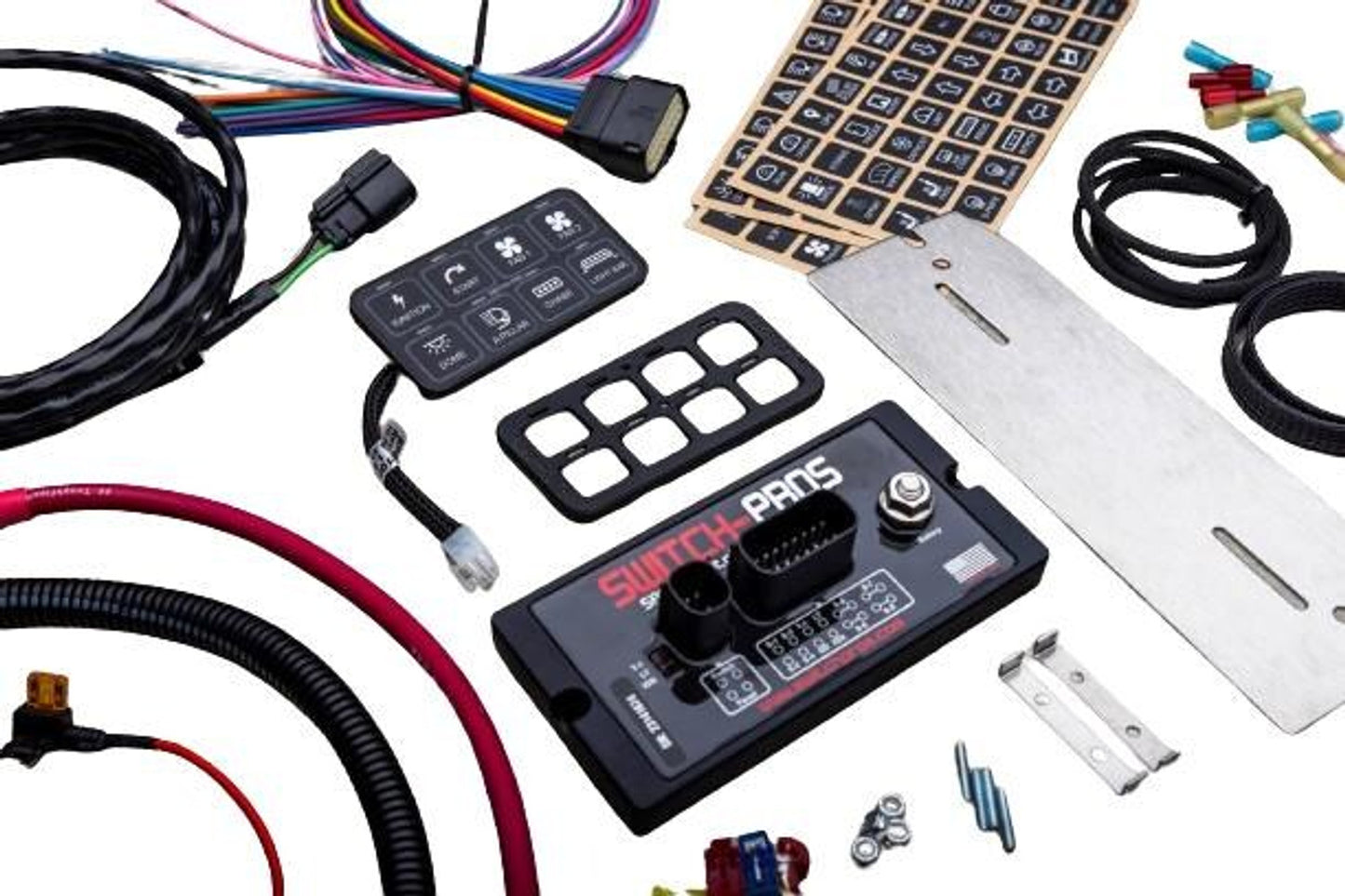

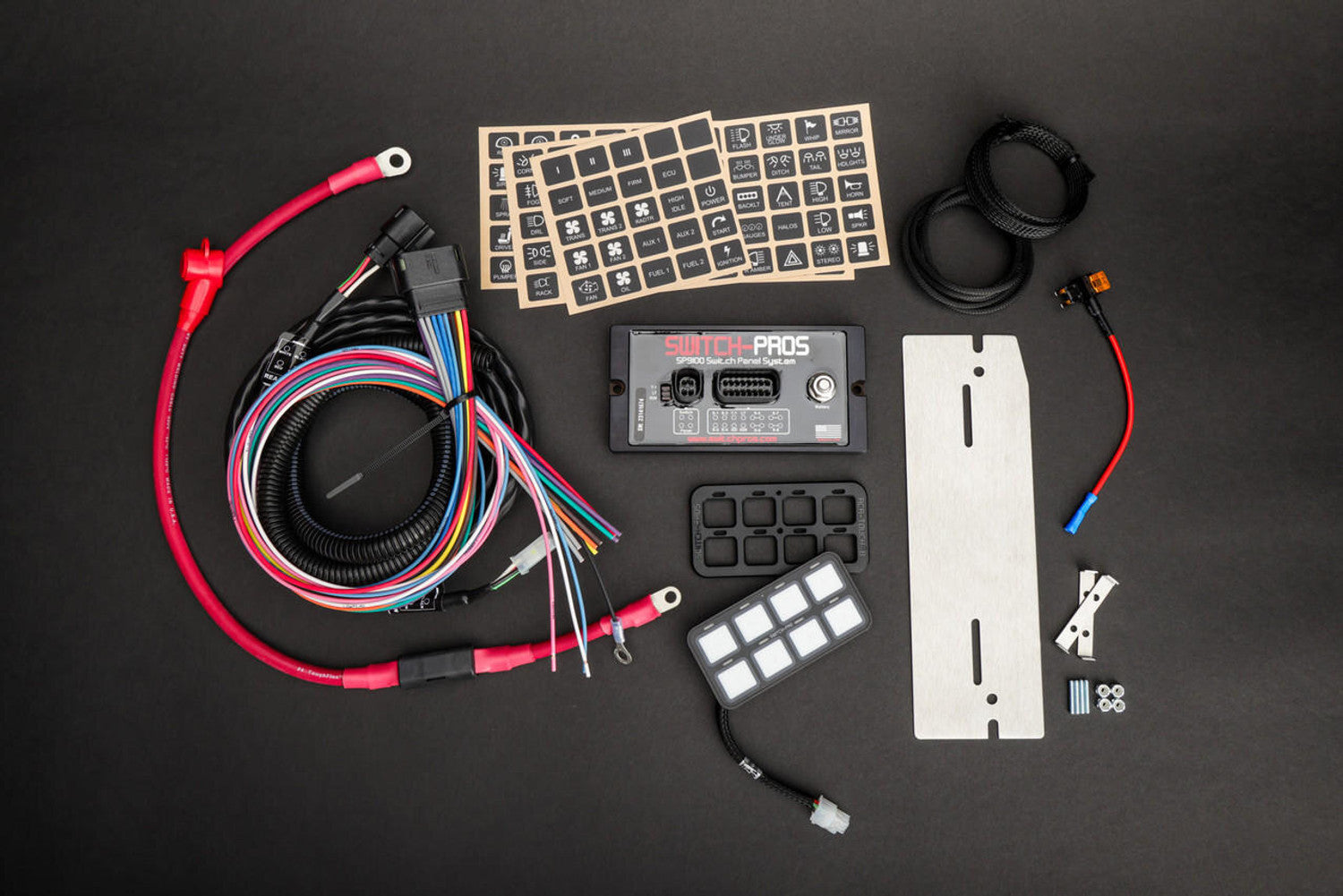

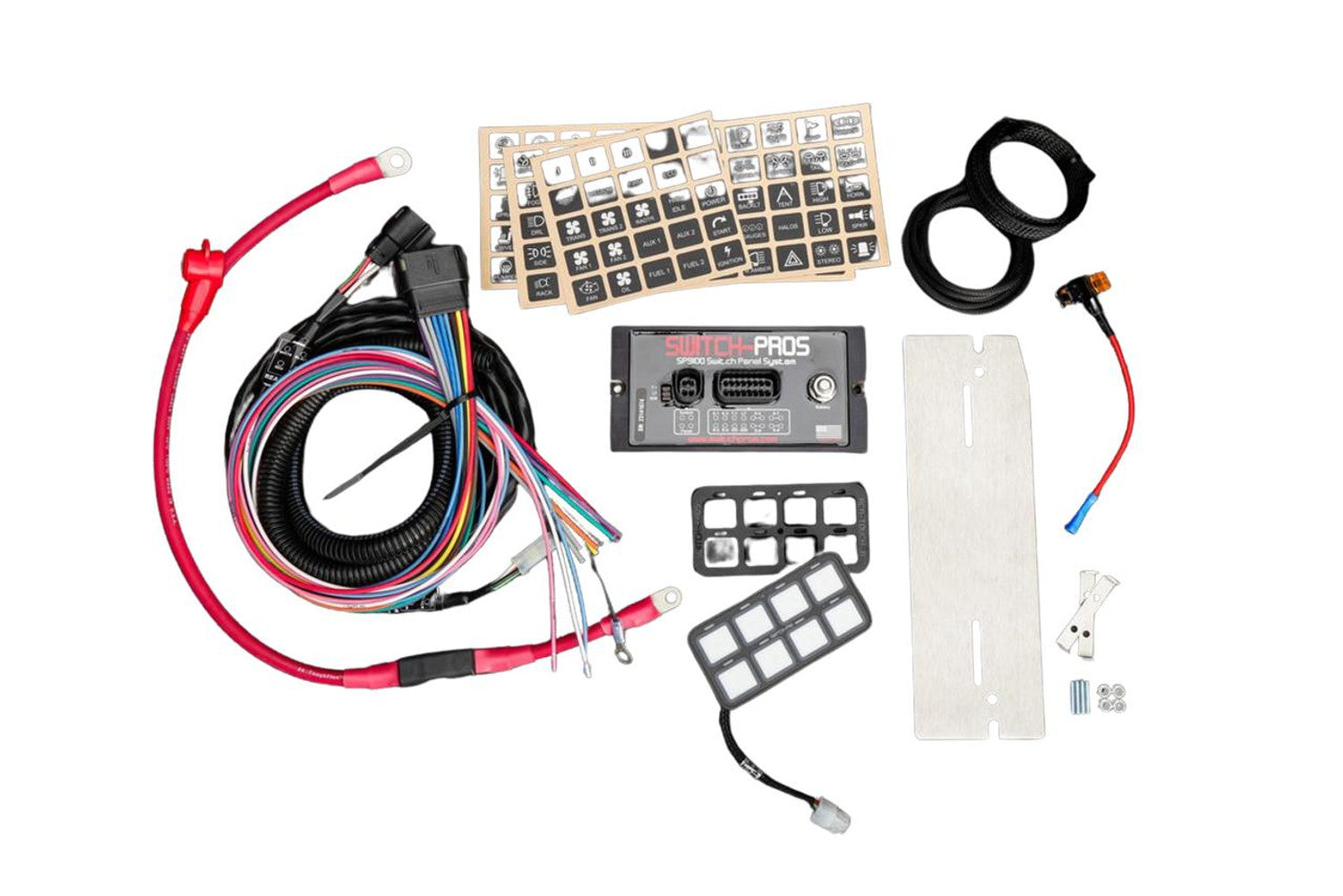

INCLUDES

• Switch Panel and Power Module

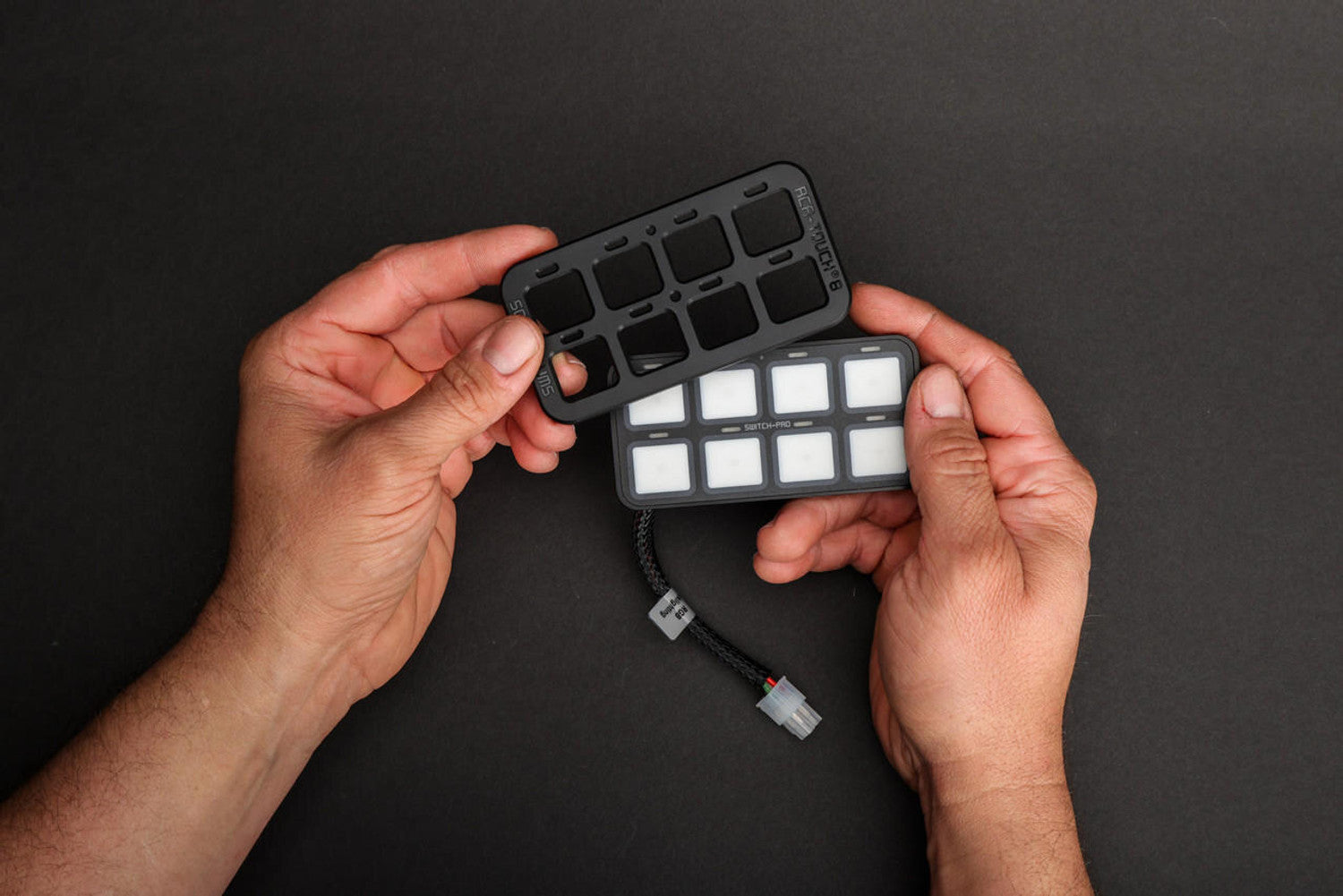

• RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 125A inline fuse

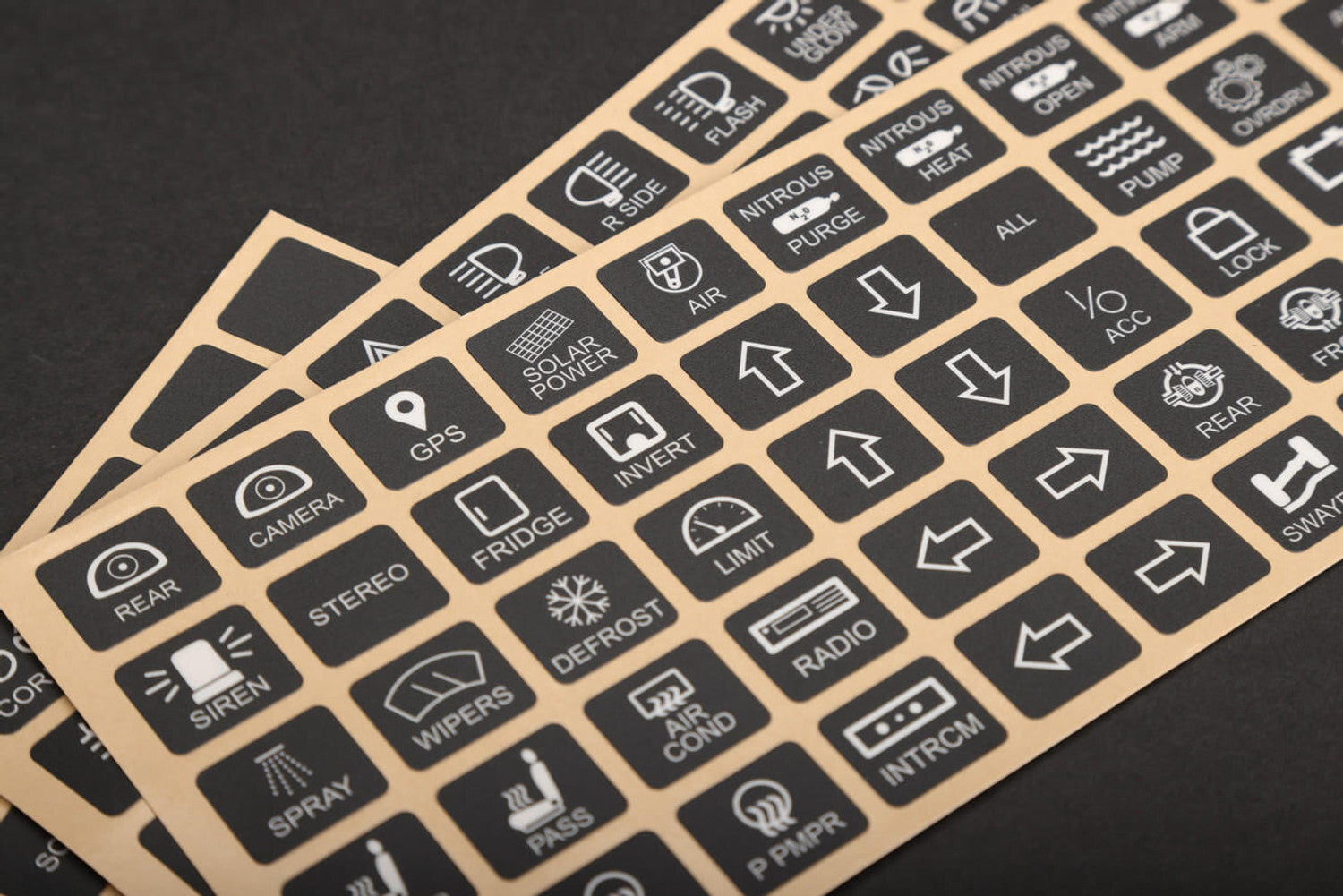

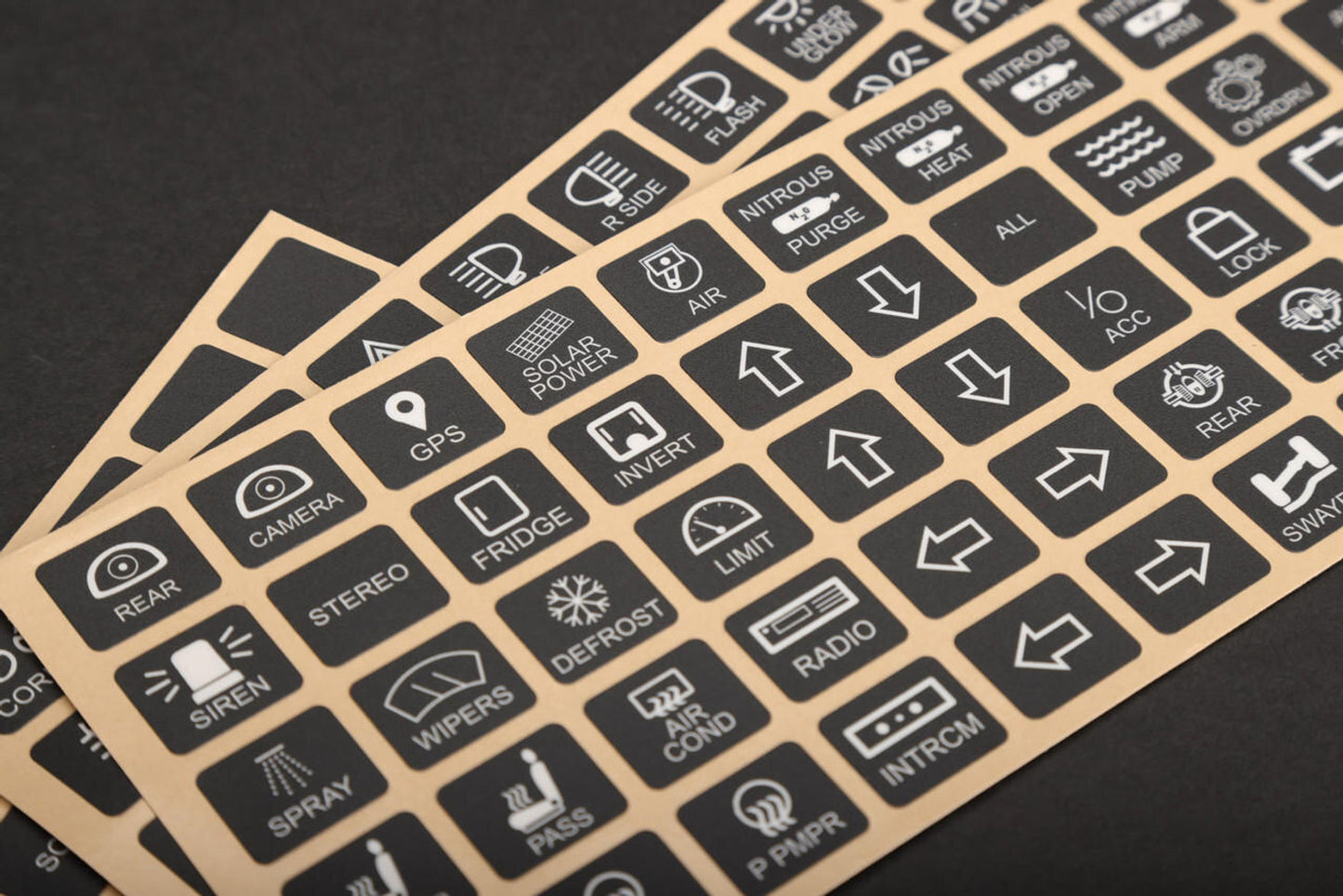

• 125 User Selectable Legends included (Horizontal orientation)
• Installation brackets and hardware
• 16-pin color coded output harness
• Detailed installation Guide

NOTE

2-3 Weeks Leadtime
