SWITCH PROS RCR-FORCE 12 SWITCH PANEL POWER SYSTEM

Switch Pros RCR-Force 12 Switch Panel Power System | UTVSource.com

FEATURES

• RGB Backlighting
• Built-in Bluetooth module for use with free Switch-Pros App
• Program and operate your panel from any device with access to the iOs or Google Play Store
• Battery Voltage Readout on App screen
• Orange LED switch indicators
• 6 Programmable LED Status indicators

Program Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 11 other switches On AND Off with one touch
• On-On-Off logic
• Touch Panel lockout
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Automatic Power-Up upon vehicle start up
• Safety Lockout for specific switches
• Time Delay off
• No bulky relay box
• Up to 4 output wires can be assigned to 1 switch
• Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module
• Proudly made in the USA!

SPECS

• 150amp capacity with 17 outputs
• 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
• 11 rated @ 15A, which can be combined for larger loads
• 1 Low Side driver switch, rated @ 2A
• Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)
• Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

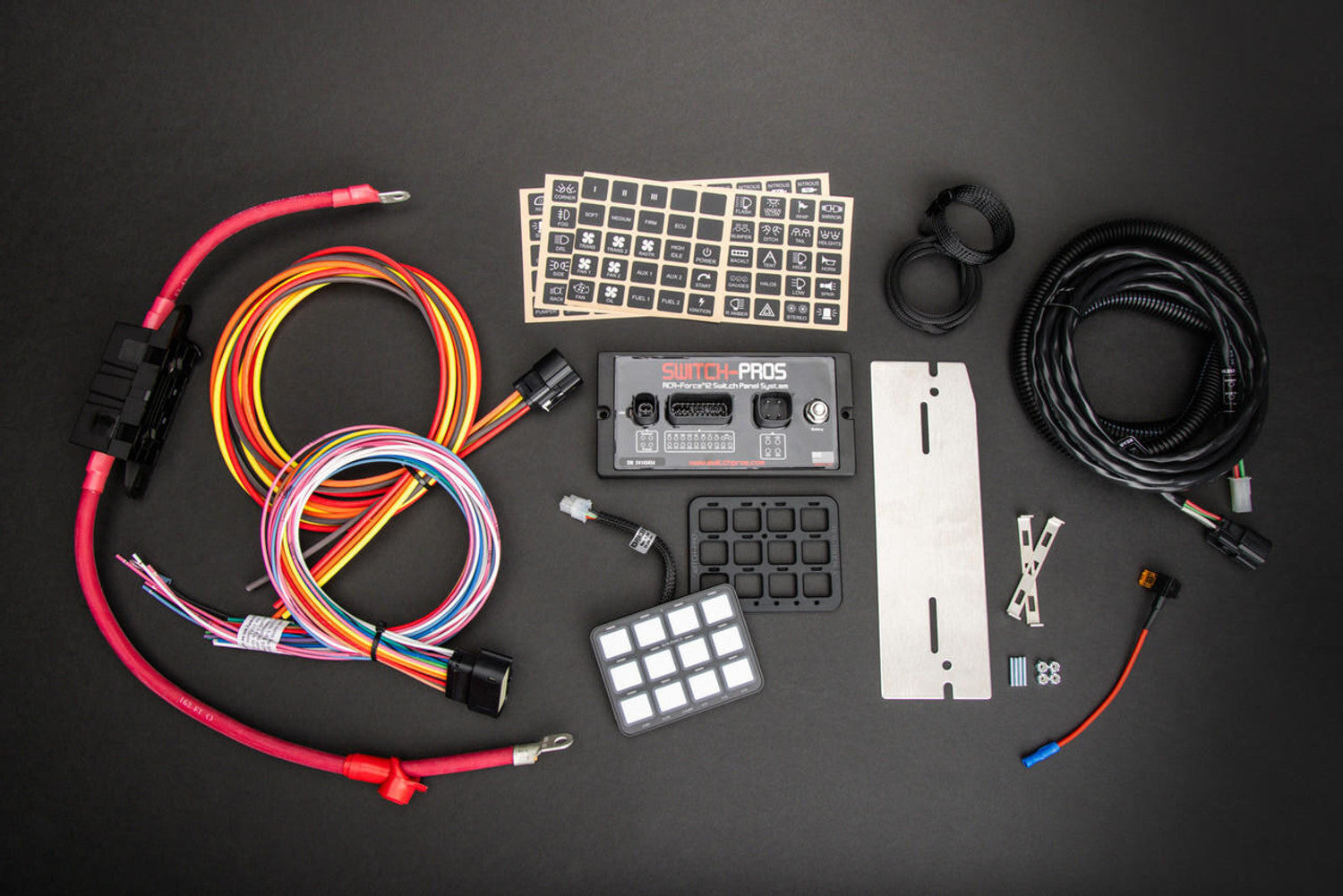

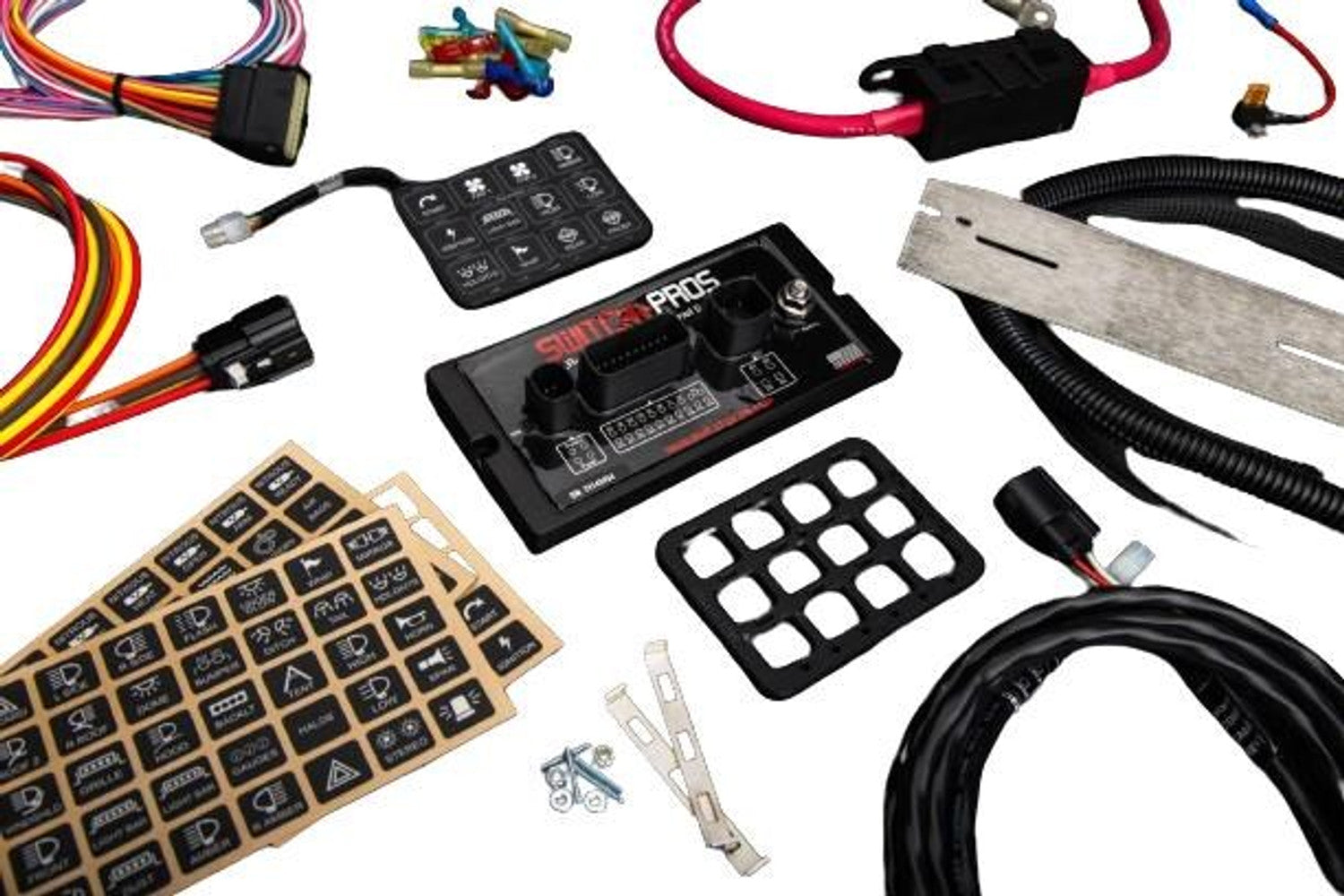

INCLUDES

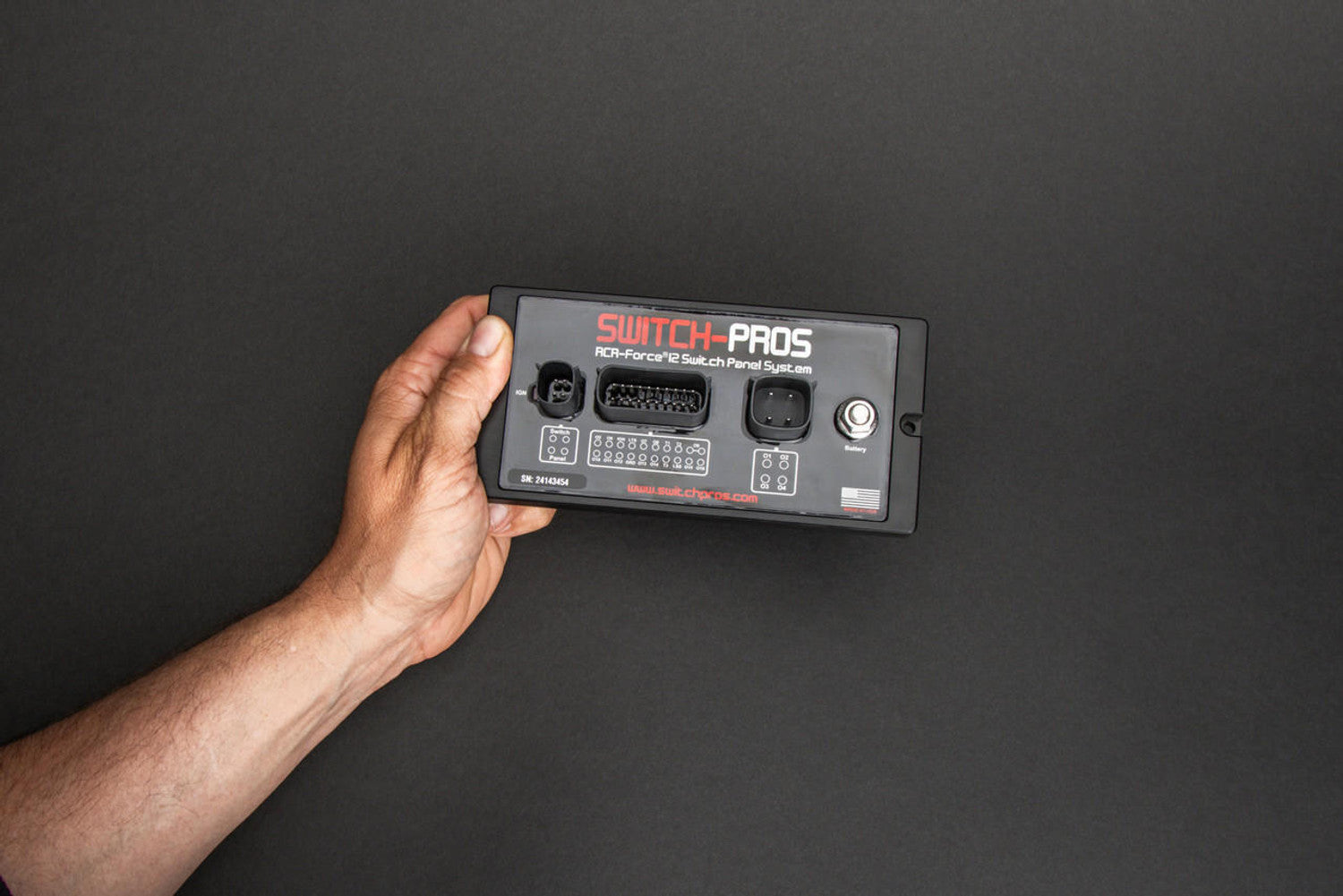

• Switch Panel and Power Module

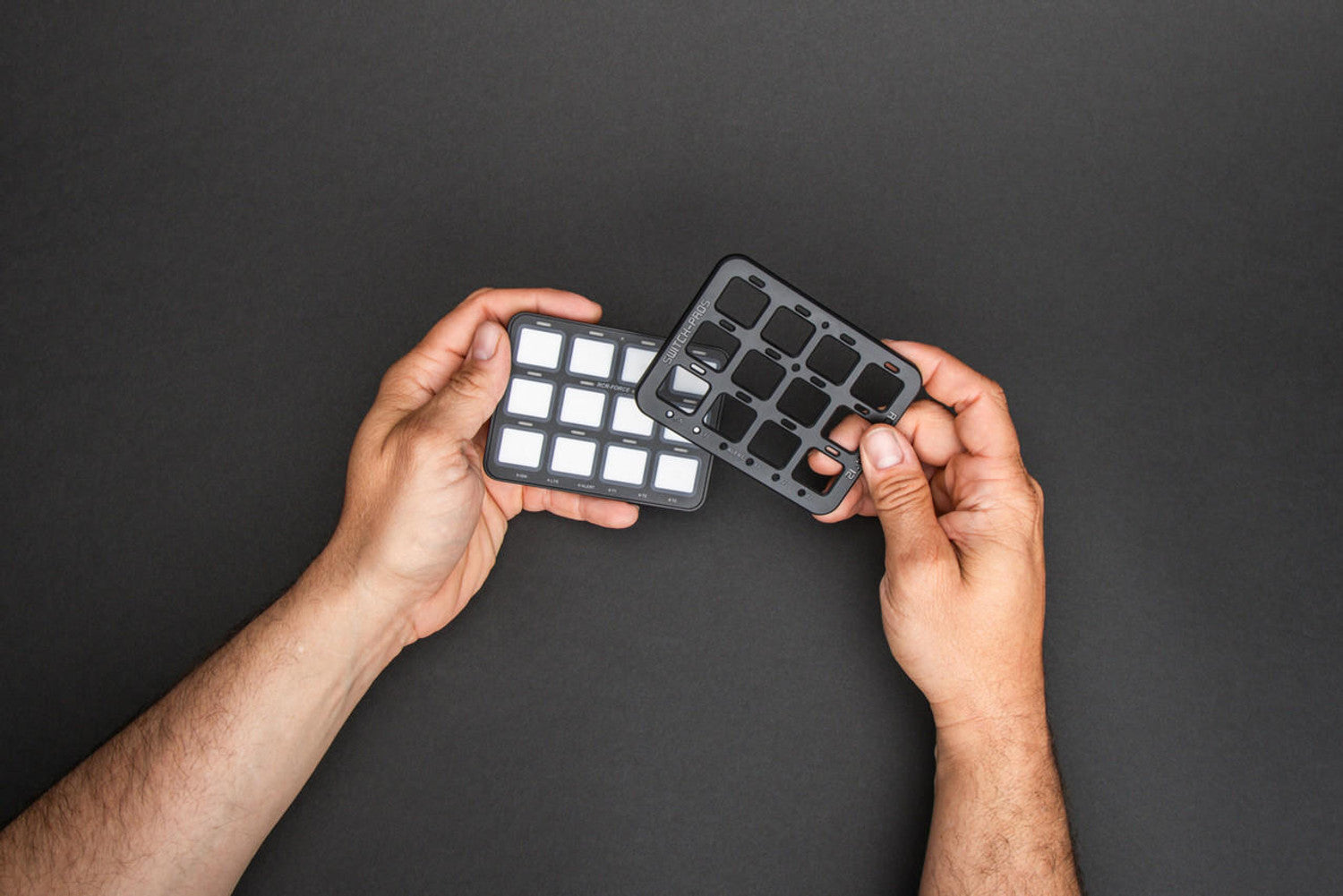

• RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 150A inline fuse
• 125 User Selectable Legends included (Horizontal orientation)
• Installation brackets and hardware
• 20-pin color coded output harness
• 4-pin color coded high inrush output harness
• Detailed installation Guide

NOTE

2 Weeks Leadtime
