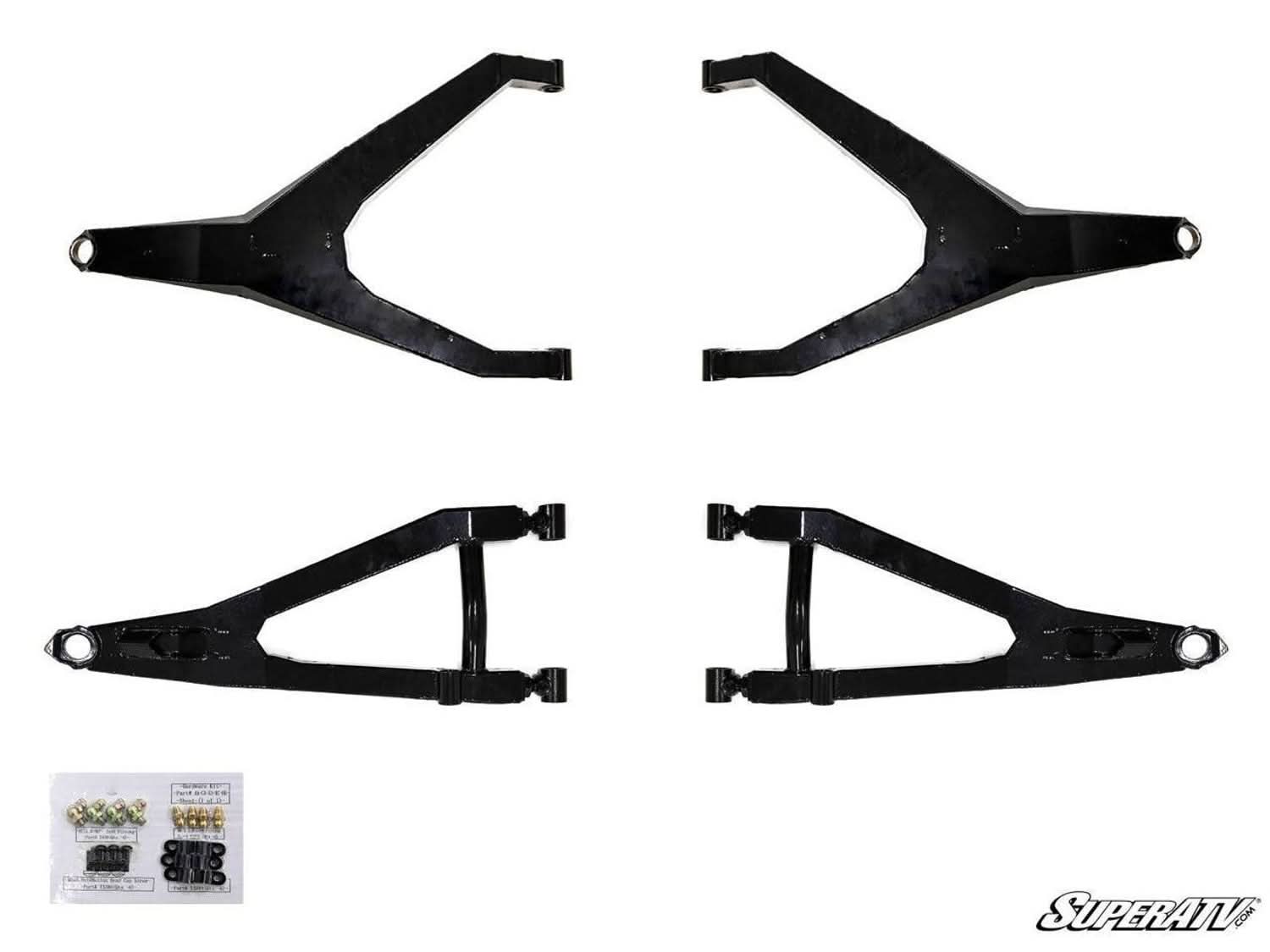

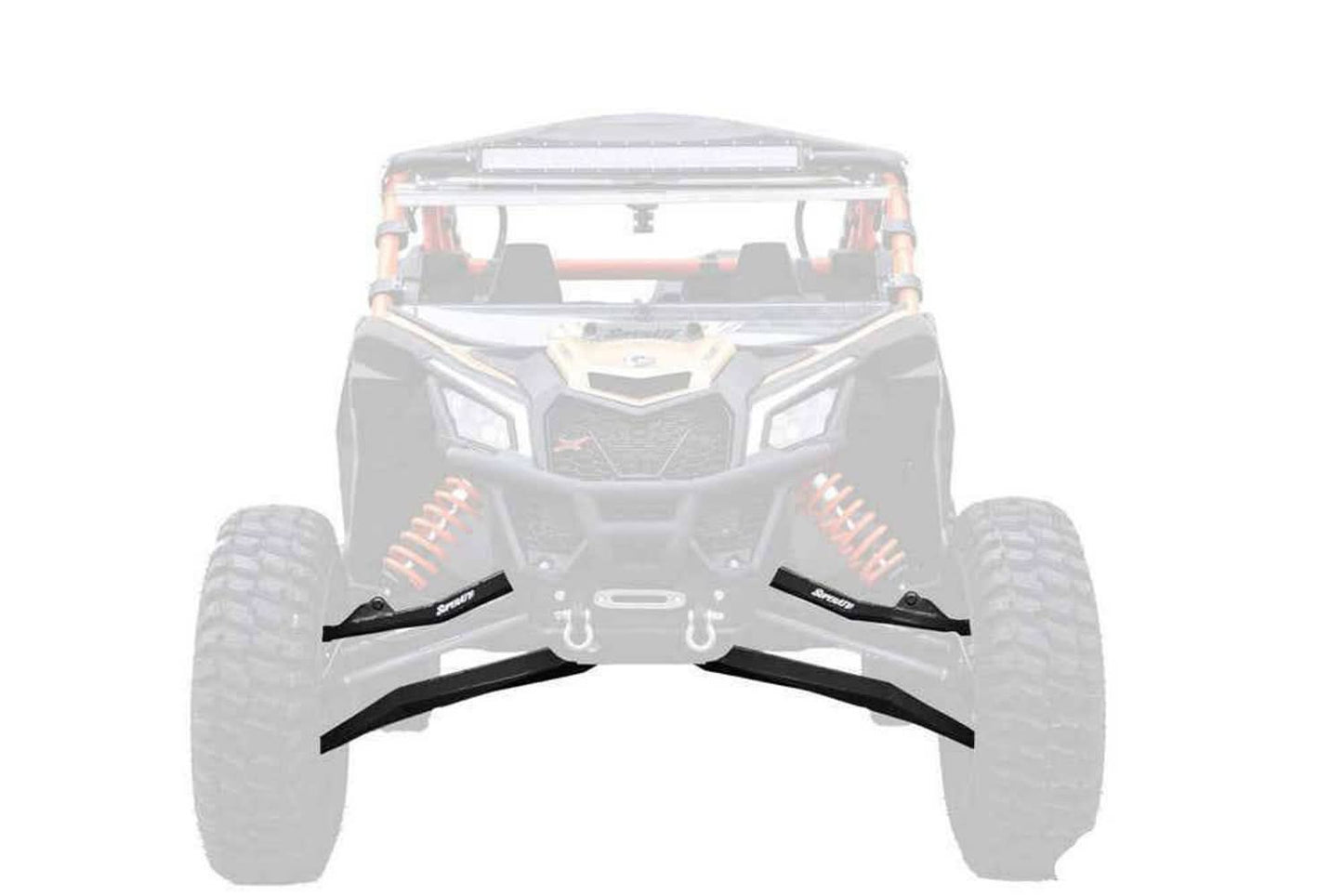

SUPERATV CAN-AM MAVERICK X3 HIGH CLEARANCE BOXED FRONT A-ARMS

SuperATV Can-Am Maverick X3 High Clearance Boxed Front A-Arms | UTVSource.com

Groundbreaking A-Arms
Speeding on the trails is always fun until your stock A-arms break because you crashed into a stump. Now your ride got cut short and your Can-Am Maverick X3 has to limp home. Riding with SuperATV’s High-Clearance Boxed Front A-Arms means that won’t happen. They’re stronger than stock and give you an extra 1.5” of ground clearance, so you can avoid those pesky ruts and rocks. If you decide to add a lift and larger tires, you can adjust your camber. Next time, you’ll be the one breaking the trails.

Extra Clearance Makes Riding Easy
Riding your next trail just got easier. SuperATV A-arms are designed with high-clearance bends that give you an extra 1.5” of ground clearance. Your Maverick X3 will smoothly glide over obstacles without needing a lift.

Irresistible Strength
When bashing through trees, you need control arms that won’t snap, no matter how hard you ride. Thank goodness these boxed A-arms use 1/8” heavy-duty steel plating that can take a beating. SuperATV finish them off with a UV-resistant powder coating that keeps them corrosion-free. That’s what extra strength looks like.

Backed by a lifetime warranty, these X3 A-arms will always last.

Easily Adjust Your Camber
SuperATV gives you more control with our adjustable pivot blocks. They’re pre-adjusted to stock specs out of the box, so you don’t have to bother with changing the camber. But it could save your tires if you add a lift or weight, so we give you the ability to adjust on the fly.

Super Duty 300M Ball Joints
SuperATV took the strongest ball joint material on the market—300M grade steel—and combined it with our superior design engineering to make the strongest ball joint on the market. It comes with an easily-accessible grease zerk and an adjustable steel-on-steel design, making it easy to keep your ball joints maintained and flexible. At 2.25x stronger than stock, you won’t find a better ball joint.

Keller Ball Joints
Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, which makes these ball joints virtually impossible to pull out. The high-quality chromoly steel stud combined with an advanced tool-steel body makes them perfect for bigger machines, bigger tires, and bigger rides. And since they’re greaseable and rebuildable, you can keep them running perfectly.

Heavy Duty Ball Joints
SuperATV heavy-duty ball joints are designed with ultimate performance and convenience in mind. Whether you’re doing flips or chasing hills, our proprietary blend of hardened 4340 VAR steel and zinc plating means this ball joint can take it. SuperATV heavy-duty ball joints also come with easily-accessible grease zerks and an adjustable design. Extensive lab and field testing shows that our heavy duty ball joints can withstand double the pressure of an OEM ball joint!

FEATURES

• Adds 1.5” of ground clearance
• Fit up to 30” tires
• 1/8” thick heavy-duty steel plating is 25% larger than stock
• Adjustable upper pivot block for full camber adjustability
• Utilizes stock A-arm bushings
• UV-resistant powder coat finish
• Easy to install
• Backed by a lifetime warranty

FITMENT

72" Wide Machine

• Can-Am Maverick X3 Turbo R RS (XRS) : 2017+
• Can-Am Maverick X3 Turbo RR XRS : 2020+
• Can-Am Maverick X3 Turbo R XRC : 2018+
• Can-Am Maverick X3 Turbo RR XRC : 2020+
• Can-Am Maverick X3 Turbo R XMR : 2018+
• Can-Am Maverick X3 Turbo RR XMR : 2020+
• Can-Am Maverick X3 MAX Turbo R RS (XRS) : 2017+
• Can-Am Maverick X3 MAX Turbo RR XRS : 2020+
• Can-Am Maverick X3 MAX Turbo RR XMR : 2020+

NOTE

• Not compatible with Smart-Shox

WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.

⚠ California Proposition 65 Warning ⚠
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.

ADDITIONAL INFO

Take your side-by-side's off-road prowess to another level with these high clearance boxed front A-arm upgrades. These heavy-duty assemblies reposition the front knuckles significantly higher in the chassis compared to stock arms, providing immense ground clearance to clear obstacles like rocks, logs and deep ruts. The boxed design utilizes thick-walled rectangular tubing for superior strength and resistance to twisting forces. Constructed from high-strength chromoly steel, they can withstand full-send abuse. The increased clearance also allows fitment of larger tire and wheel packages without rubbing issues. Gain an edge in extreme rock crawling, trail riding and other punishing off-road environments with these high clearance boxed front A-arm upgrades.
