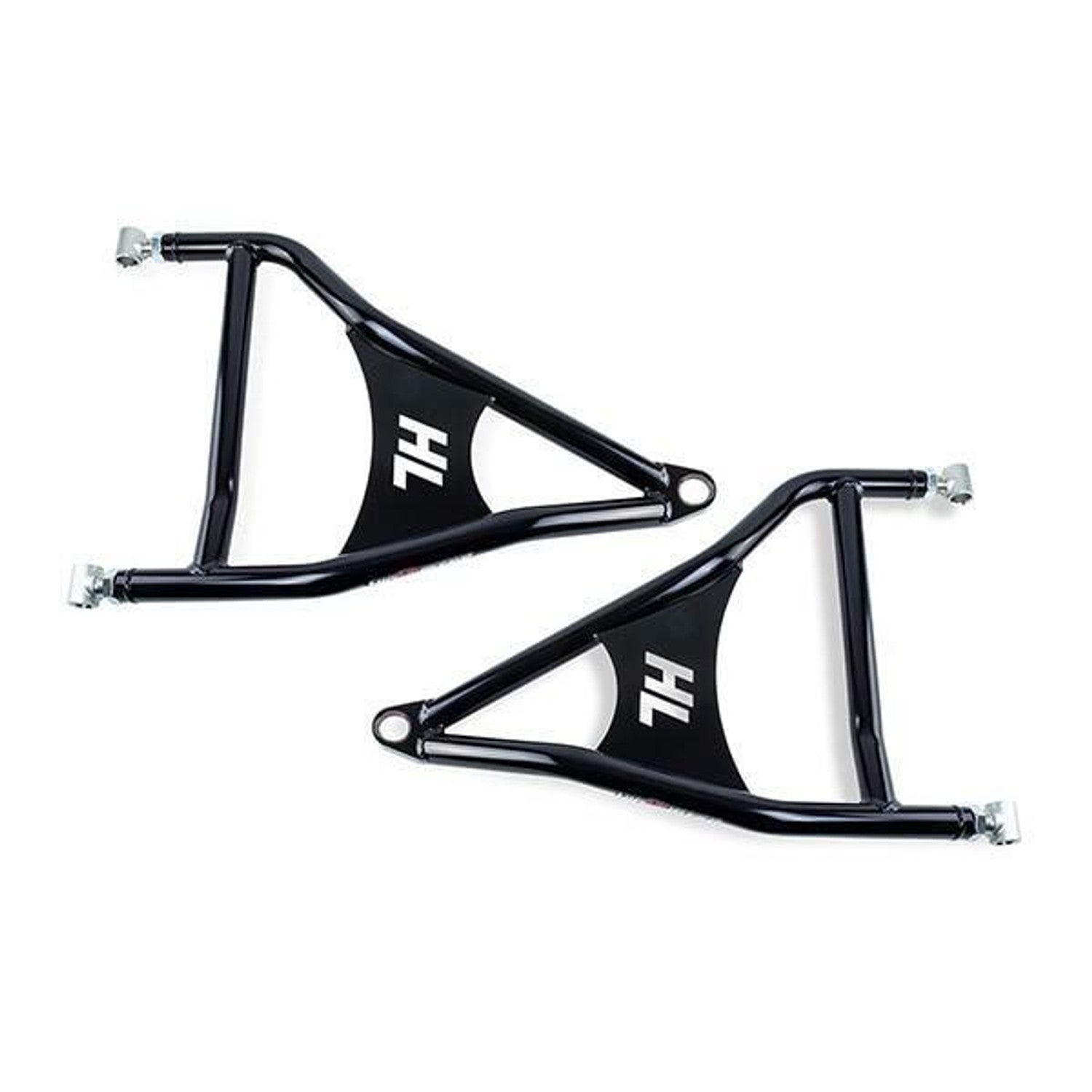

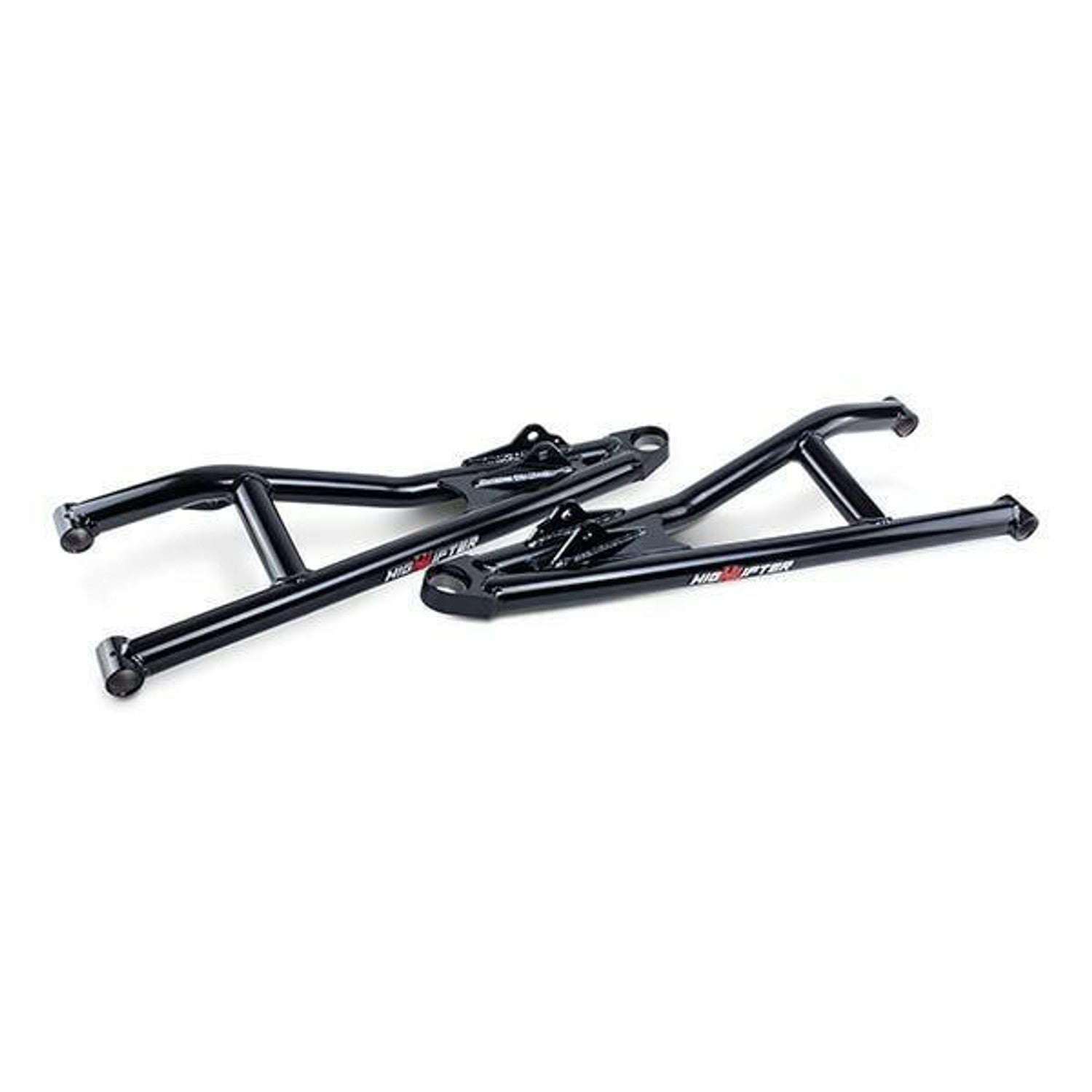

All new High Lifter APEXX 2017-21 Can-Am Maverick X3 Front Forward Upper & Lower Arms (72" Models) (Black) (HDFFA-CMX3-B) are stronger, adjustable and engineered for the most punishing terrain with 1.75" of additional ground clearance and raked forward 1.5". The control arms are tested in extreme environments and built to last. Push your Can-Am Maverick X3 to the limits and tackle obstacles you couldn't before!

FEATURES

• Adjustable heat-treated collars for camber adjustability with a 1" thread
• Raked forward 1.5"
• Over 3 degrees of camber adjustment in each direction
• Heavy duty ball joint brackets to eliminate deformation issues, Keller ball joint compatible
• Ladder bar compatible with the 1.5" ID clamps
• Extreme duty 1.5" x .120" DOM steel construction
• Up to 2" of added ground clearance compared to OEM lower arm
• Mounting accommodations for OEM brake lines using OEM tabs instead of P-clamps
• Optimized sway bar linkage angles
• Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)
• Powder Coated

FITMENT

• 2017 Can-Am Maverick X3 Max X rs Turbo R
• 2017 Can-Am Maverick X3 X rs Turbo R
• 2018 Can-Am Maverick X3 Max X ds Turbo R
• 2018 Can-Am Maverick X3 X rc Turbo R
• 2018 Can-Am Maverick X3 X rs Turbo R
• 2019 Can-Am Maverick X3 Max X rs Turbo R
• 2019 Can-Am Maverick X3 X mr Turbo R
• 2019 Can-Am Maverick X3 X rc Turbo R
• 2019 Can-Am Maverick X3 X rs Turbo R
• 2020 Can-Am Maverick X3 Max X mr Turbo RR
• 2020 Can-Am Maverick X3 Max X rs Turbo R
• 2020 Can-Am Maverick X3 Max X rs Turbo RR
• 2020 Can-Am Maverick X3 X mr Turbo RR
• 2020 Can-Am Maverick X3 X rc Turbo RR
• 2020 Can-Am Maverick X3 X rs Turbo R
• 2020 Can-Am Maverick X3 X rs Turbo RR
• 2021 Can-Am Maverick X3 Max rs Turbo R
• 2021 Can-Am Maverick X3 Max X mr Turbo RR
• 2021 Can-Am Maverick X3 Max X rs Turbo RR
• 2021 Can-Am Maverick X3 rs Turbo R
• 2021 Can-Am Maverick X3 X mr Turbo RR
• 2021 Can-Am Maverick X3 X rc Turbo RR
• 2021 Can-Am Maverick X3 X rs Turbo RR
• 2022 Can-Am Maverick X3 Max rs Turbo RR 72
• 2022 Can-Am Maverick X3 Max X mr Turbo RR 72
• 2022 Can-Am Maverick X3 Max X rs Turbo RR 72
• 2022 Can-Am Maverick X3 rs Turbo RR 72
• 2022 Can-Am Maverick X3 X mr Turbo RR 72
• 2022 Can-Am Maverick X3 X rc Turbo RR 72
• 2022 Can-Am Maverick X3 X rs Turbo RR 72
• 2023 Can-Am Maverick X3 Max rs Turbo RR 72
• 2023 Can-Am Maverick X3 Max X mr Turbo RR 72
• 2023 Can-Am Maverick X3 Max X rs Turbo RR 72
• 2023 Can-Am Maverick X3 rs Turbo RR 72
• 2023 Can-Am Maverick X3 X mr Turbo RR 72
• 2023 Can-Am Maverick X3 X rc Turbo RR 72
• 2023 Can-Am Maverick X3 X rs Turbo RR 72
• 2024 Can-Am Maverick X3 Max rs Turbo RR 72
• 2024 Can-Am Maverick X3 Max X mr Turbo RR 72
• 2024 Can-Am Maverick X3 Max X rs Turbo RR 72
• 2024 Can-Am Maverick X3 rs Turbo RR 72
• 2024 Can-Am Maverick X3 X mr Turbo RR 72
• 2025 Can-Am Maverick X3 Max rs Turbo RR 72
• 2025 Can-Am Maverick X3 Max X mr Turbo RR 72
• 2025 Can-Am Maverick X3 Max X rs Turbo RR 72
• 2025 Can-Am Maverick X3 rs Turbo RR 72
• 2025 Can-Am Maverick X3 X mr Turbo RR 72

Heavy Duty Strength

High Lifter’s new heavy duty control arms add more support than factory. Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride. High Lifter arms are constructed out of 1.5” DOM with .188 wall tubing. This is a 50% increase in size and a 70% increase in steel thickness for added durability and strength.

Built in Adjustability

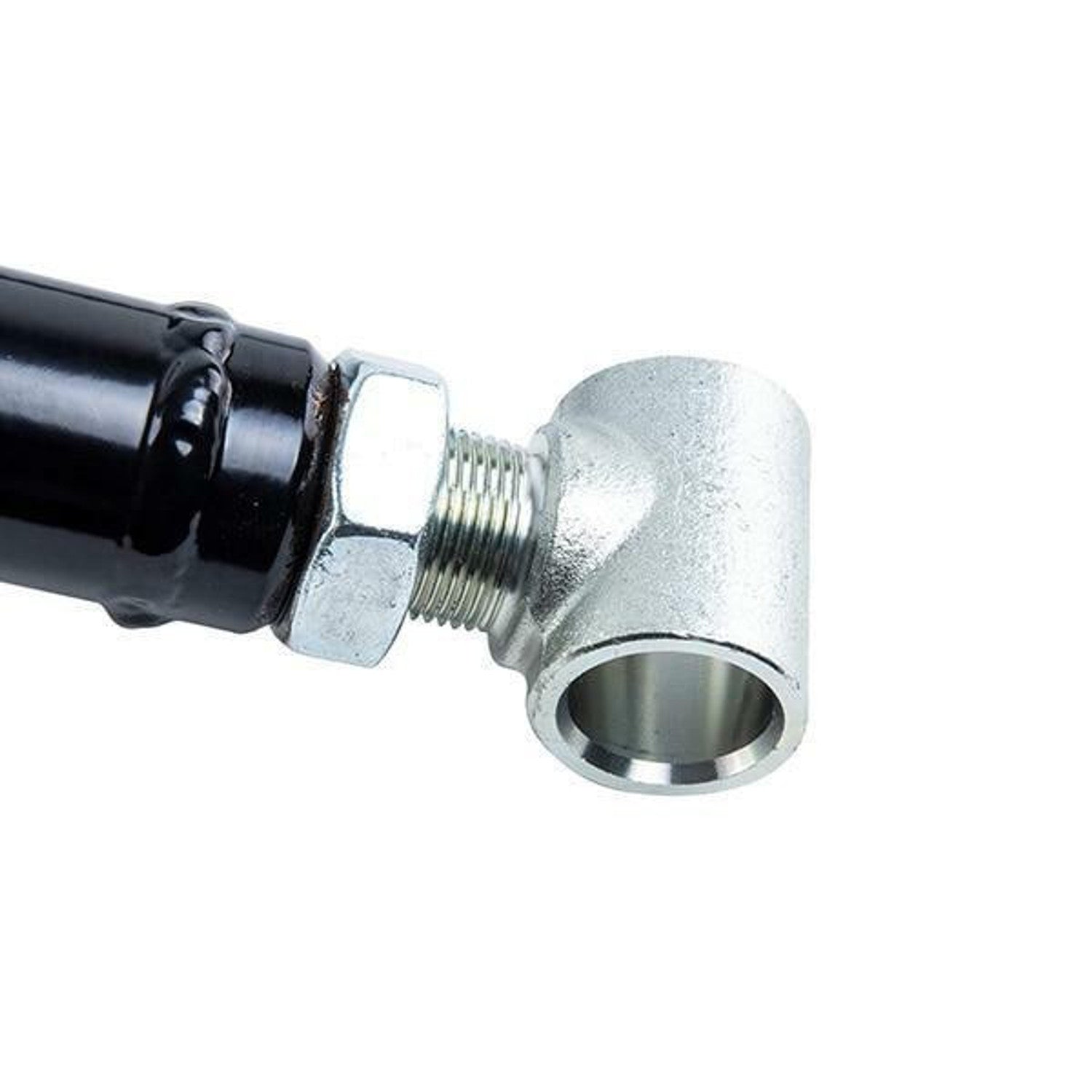

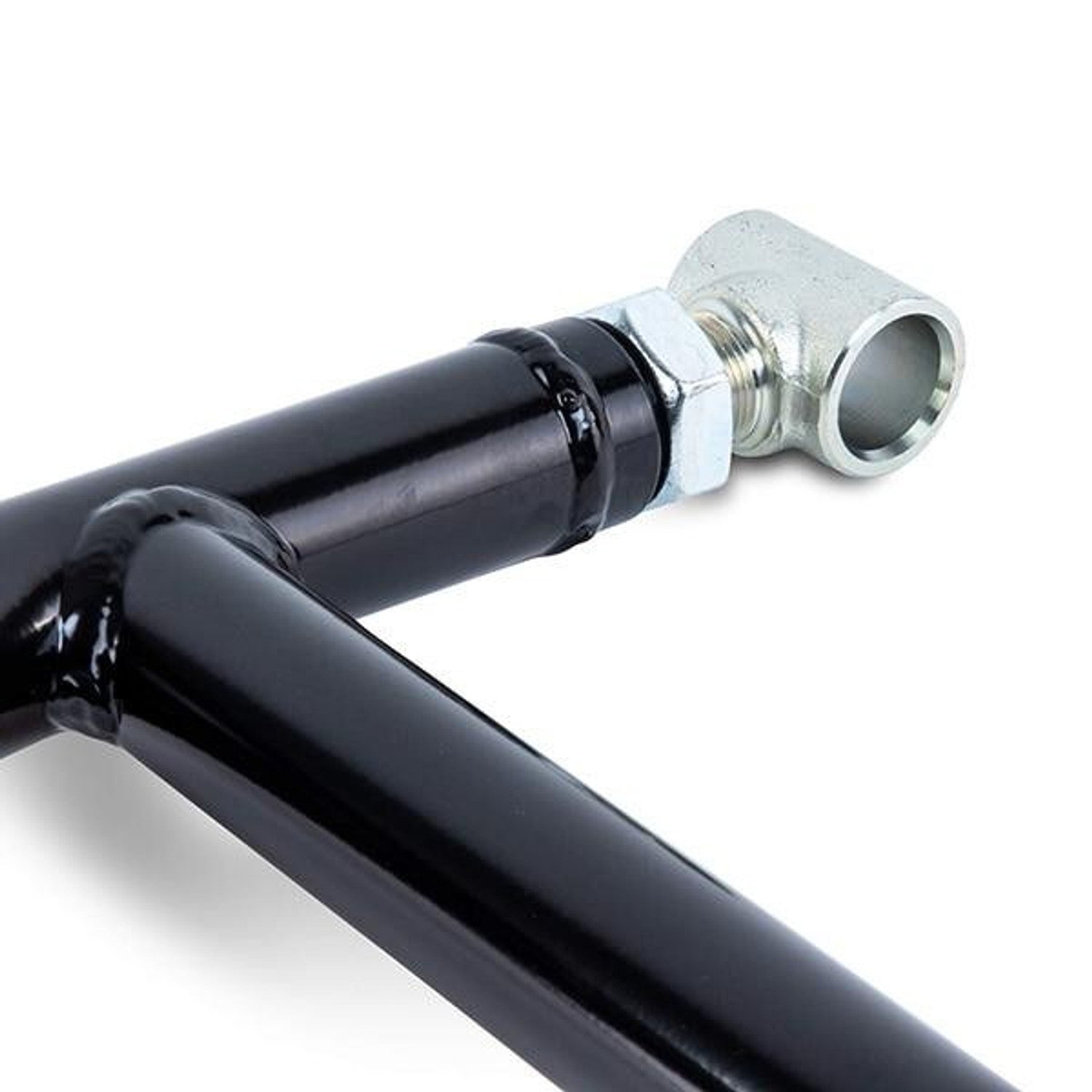

The lower arms also feature an adjustability component in the bushing collars to eliminate premature wearing that can come from the addition of lift kits, portals, or larger tires. When the kit is set to the factory position, you have 3/8” of adjustability camber in and out. Heat treated and plated adjustable bushing collars allow you to be confident in the strength you’re adding to your ride. This kit comes packaged and preadjusted to the factory position, and factory bushings and caps should be used for installation.

Increased Ground Clearance

We maximized ground clearance by strategically arching the lower control arm with double and TRIPLE bends. This unique design allowed us to get an additional 1.75” of ground clearance to avoid impacting those nasty trail obstacles. These bends maintain the factory geometry, which helps reduce wear on components like axles and tie rods. Our forward arms allow you to run larger tires without a suspension lift. We’ve improved the upper control arm by repositioning the sway bar tab. This will reduce the extreme angles places on the sway bar links and reduce wear.

Reinforced Ball Joints Brackets

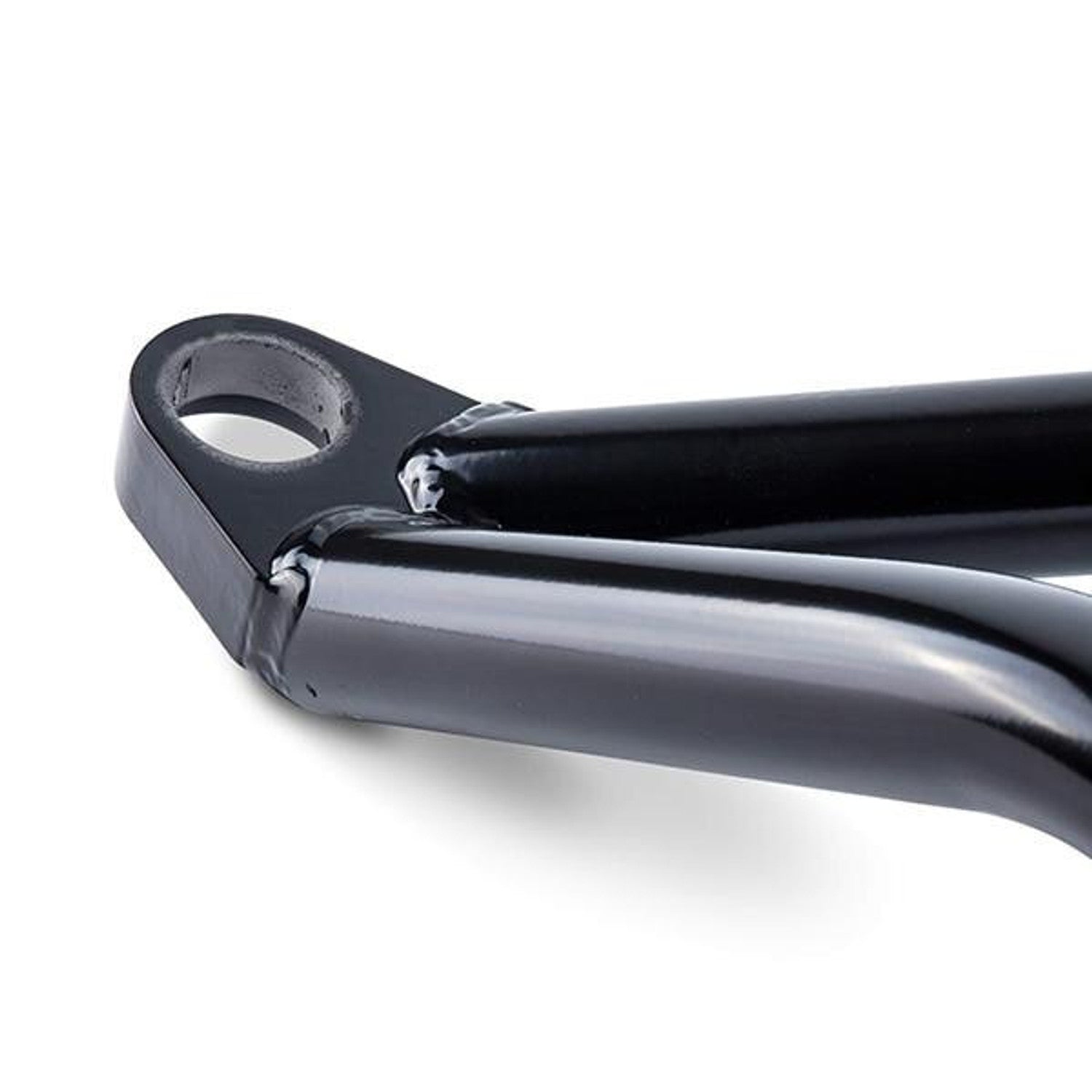

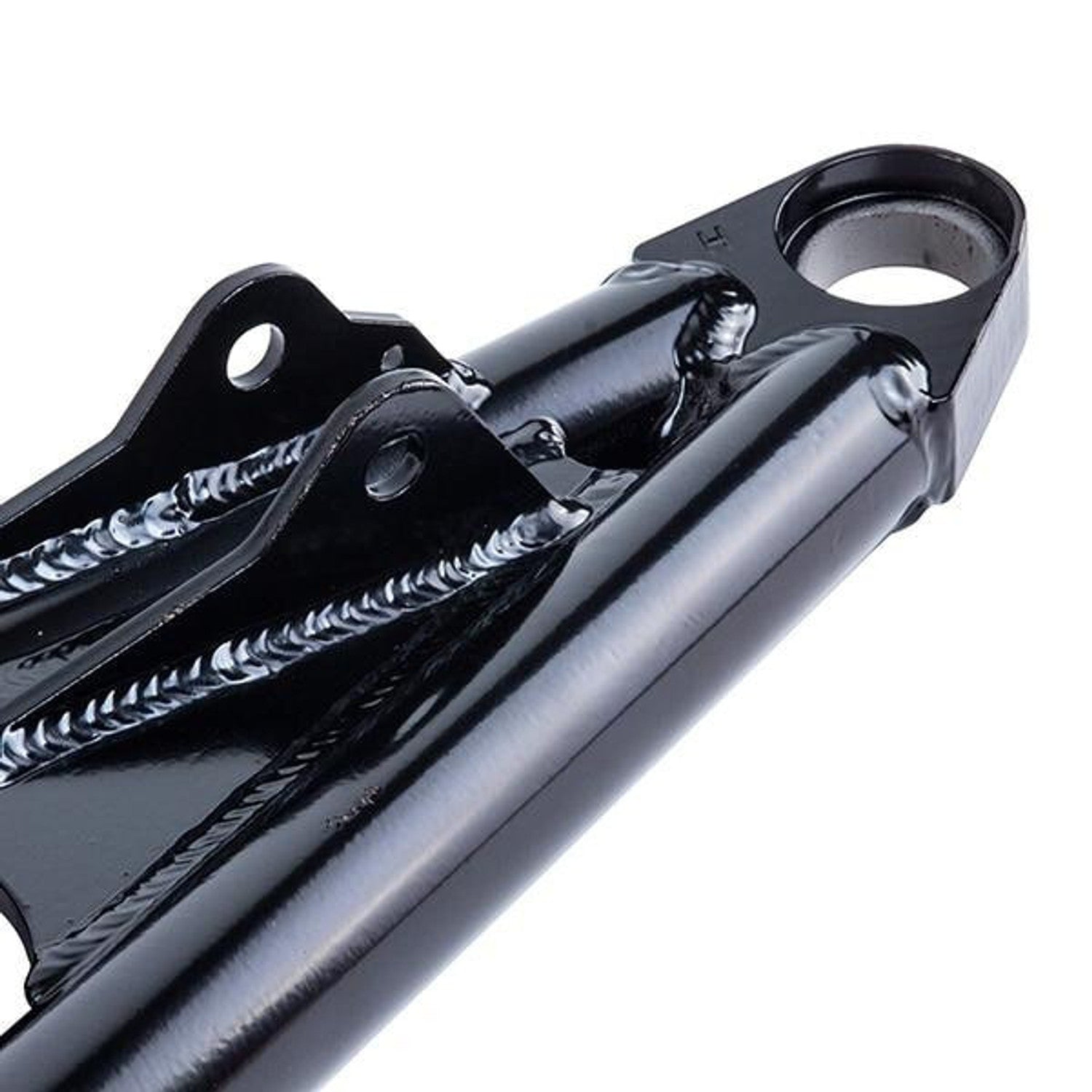

Portals and large tires apply torque that can distort the ball joint bracket, leading to failure of the arms. With over 130% increase in the ball joint mounting area, we are helping to prevent breakdown or “egging” of the mounting bracket.

Tire Fitment: Up to 34.5"

Our tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications such as, but not limited to, wheel offset, actual tire diameter and actual tire width. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

NOTES

• This kit comes with control arms only, no ball joints.
